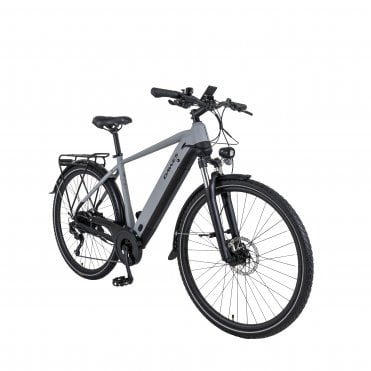

Dawes Spire 2.0 Hybrid Crossbar
£1,999.00
Prices from £1999 depending on specification, please enquire for options and more information. Various frame sizes and colours available for most models.
The all-new Dawes Spire 2.0 Crossbar electric bike is a versatile hybrid; perfectly suited for the daily commute, popping to the shops or a weekend of riding your local country park and canal towpaths. When compared to the Dawes Spire 1.0, this bike features upgraded 1×9 Shimano Alivio gearing, a larger 540wh battery and a sleek centre mounted handlebar display.
Description
| Maximum Range | 42 miles / 68km |
|---|---|
| Recharge Time | 6 hours |
| Maximum Assisted Speed | 15.5mph / 25kmh |
| Motor | Bafang rear hub motor, 36v 250w, 32nm torque, 25kmh max speed |
| Motor Type | Rear hub motor |
| Motor Torque | 32nm |
| Battery | Integrated 540wh (36V 15.0ah), Samsung cells, Removable for charging on or off the bike |
| Battery Type | Integrated |
| Charger | 42V 2A, 3 pin UK plug |
| Display | Centre mounted LCD display, 5 modes, Walk assist, Lights on/off, Battery Indicator, Speed, Average speed, Max speed, Odometer, Trip, Trip Time, |
| Speed Sensor | Left hand crank mounted |
| Frame | 6061 aluminium crossbar frame, Internal cable routing, Fully integrated removable battery, 700c wheels |
| Frame Size | Medium |
| Fork | 700c suspension fork, Hydraulic lockout, 70mm travel |
| Headset | Sealed bearings |
| Handlebar | Aluminium, 680mm wide, 20mm rise, 6° backsweep |
| Stem | Aluminium, 90mm reach, 31.8mm |
| Grips | Ergonomic comfort, Lock on, Black |
| Gear Shifters | Shimano Altus SL-M2010 Rapidfire Plus, 9 speed |
| Rear Derailleur | Shimano Alivio RD-M3100 Shadow, 9 speed |
| Chain | KMC Z9, 9 speed |
| Cassette/Freewheel | Shimano Altus CS-HG201, 11-36T, 9 speed |
| Chainset | Aluminium, 42T, 170mm |
| Number of Gears | 9 |
| Bottom Bracket | Sealed |
| Pedals | Alloy city style, Black |
| Brakes | Tektro M275 hydraulic disc, 180mm rotor (front), 160mm rotor (rear) |
| Brake Levers | Tektro M275 hydraulic disc |
| Front Hub | Alloy with quick release, 36 hole |
| Rear Hub | Bafang rear hub motor, 36v 250w, 32nm torque, 25kmh max speed |
| Rims | 700c double wall alloy, 36 hole |
| Tyres | Kenda K197, 700x45c, Puncture protection and reflective side strip |
| Saddle | Selle Royal Freeway |
| Seat Post | Aluminium, 350mm, 30.4mm |
| Lights | Front – Star Union LED, 20 Lux, Fork mounted, Powered by bike battery / Rear – Star Union 3 LED with integrated reflector, Pannier rack mounted, Powered by bike battery |
| Mudguards | Full length, 56mm wide, Black |
| Kickstand | Chainstay mounted, Aluminium |
| Pannier Rack | Aluminium with rear light mounted |
