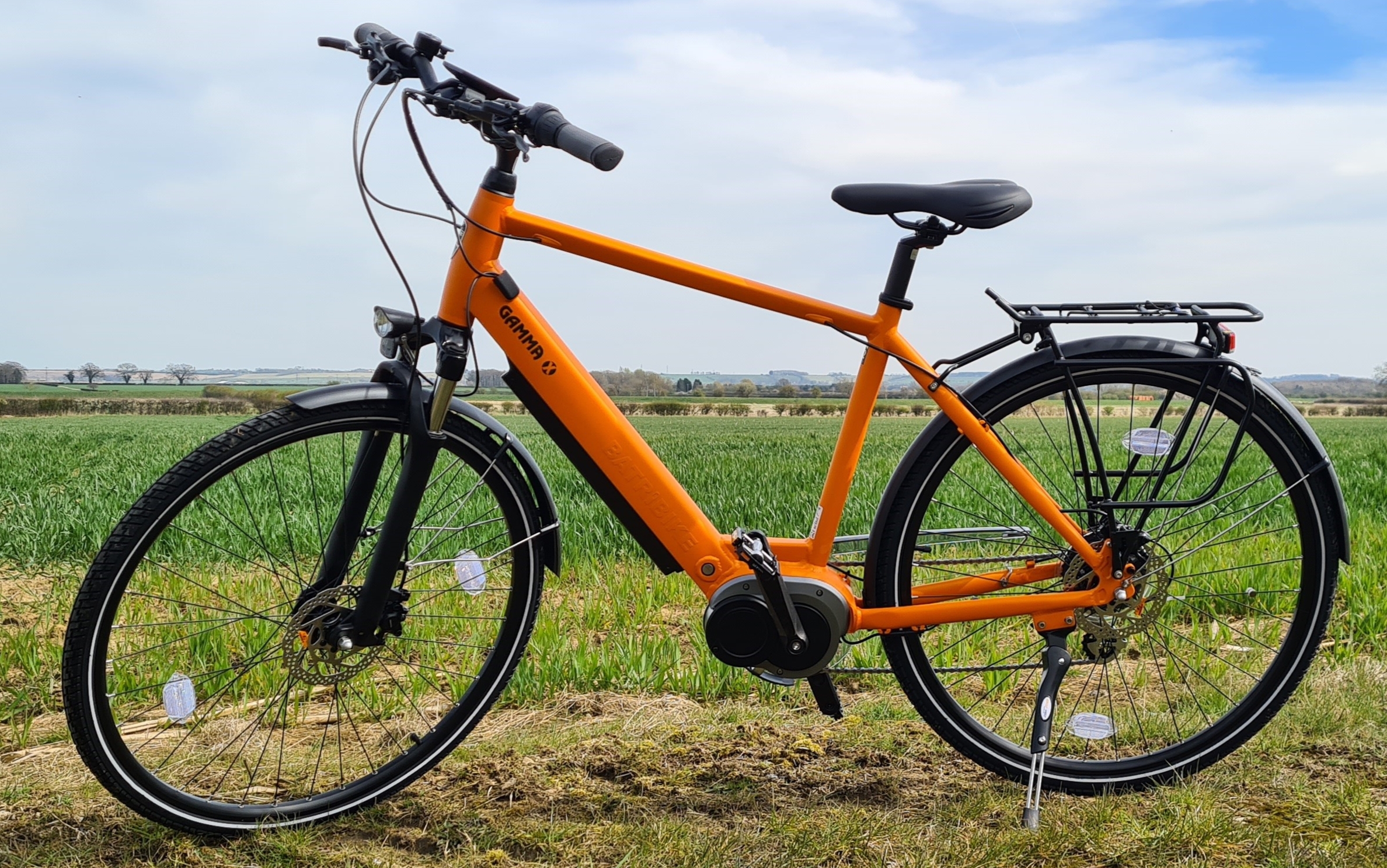

Batribike Gamma – x

Description

Crank motor e-Bike in two frame styles

• Cross-bar or Step-through style with Hidden Battery
• High Torque Centre Motor (100Nm)
• Connect+ Graphic display with Throttle
• Stylish City Bike

• MOTOR
  	250W centre mounted High Torque (100Nm) Promovec Motor with 3 year Warranty

  	GEARS
  	8 Speed Shimano Altus Gears and shifter

  	BRAKES
  	Shimano hydraulic disc brakes front and rear

  	WEIGHT OF BIKE
  	22 kg | 48.5 lbs without battery 24.1 kg | 53.1 lbs with Battery

  	WEIGHT OF BATTERY
  	Eco Battery 2.1 kg | 4.63 lbs Standard Battery 2.36 kg | 5.2 lbs Long Range Battery 2.44 kg | 5.38 lbs

  	LOADING
  	Total – Rider & Luggage – 120 kg | 18 st 12 lbs Rack – 25 kg | 55lbs

  	POWER LEVELS
  	Connect+ Graphic Display – 5 Levels (select from Speed, Power or Distance related)

  	CHARGE TIME
  	4 to 6 hours from flat <2A Charge Current

  	LIGHTS
  	Front – System powered LED light Rear – System powered LED light

  	DIMENSIONS 1
  	Overall Length – 188 cm | 74 ins Height – 109 cm | 43 ins Width – 64 cm | 25.2 ins

  	DIMENSIONS 2
  	Saddle Height MIN – 91 cm | 36 ins (S) Saddle Height MAX – 104 cm | 41 ins (X) Saddle Height MAX – 122 cm | 48 ins (S) Step-Through – 48 cm | 18.9 ins (X) Crossbar MIN – 78 cm | 30.7 ins

  	DIMENSIONS 3
  	(S) Frame Size – 45 cm | 17.7 ins (X) Frame Size – 52 cm | 20.5 ins Wheel Size – 28 ins (S) Wheelbase – 115 cm | 45.3 ins (X) Wheelbase – 116 cm | 45.7 ins

  	RANGE *
  	Eco – 27-61 km | 17-38 miles Standard – 36-80 km | 22-50 miles Long Range – 44-98 km | 27-61 miles

  	WARRANTY
  	Cycle Parts – 2 Years Battery – 3 Years Motor – 3 Years Frame – 5 Years

  	INCLUDED
  	Suspension Forks Side Stand Mudguards and Carrier
