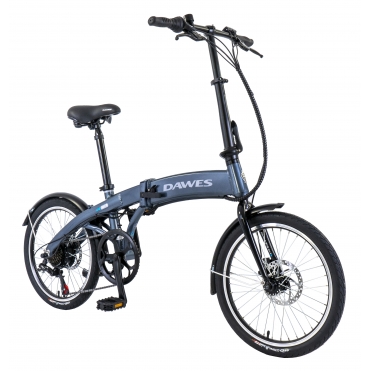

DAWES ARC II Electric Folding Bike

DAWES ARC II Electric Folding Bike

£1,299.99

Prices from £1299.99 depending on specification, please enquire for options and more information. Various frame sizes and colours available for most models.

You may have guessed from the name, but our new ARC II is an improved version of our previously very popular ARC folding electric bike.  Not only does an electric bike offer the convenience of allowing you to get further, quicker…but this model also neatly folds away to be stored at home, at the office or on public transport.

Category:

Description

Maximum Range 22 miles / 35km
Recharge Time 5 hours
Maximum Assisted Speed 15.5mph / 25kmh
Motor Bafang 36V 250W motor
Motor Type Rear hub motor
Motor Torque 32nm
Battery 238Wh (36V 6.6Ah)
Battery Type Integrated with USB charging function
Charger 3 pin UK plug
Display Handlebar mounted LED display, 3 level power assist & walk assist
Speed Sensor 12 point pedal sensor
Frame Alloy folding frame with integrated battery
Frame Size 13″ (Folding)
Fork Hi-tensile steel
Headset 1″ threaded
Handlebar Flat, 600mm wide
Stem Alloy telescopic folding stem
Grips Black ergo comfort grips
Gear Shifters Shimano Revoshift, 6 speed
Rear Derailleur Shimano RD-TZ500, 6 speed
Chain KMC Z7
Cassette/Freewheel Shimano 6 speed freewheel, 14-28T
Chainset 170mm crank, 52T chainring
Number of Gears 6
Bottom Bracket Cartidge type, 122.5mm
Pedals Folding pedals for improved storage
Brakes Mechanical disc brakes, 160mm rotors
Brake Levers Alloy lever including motor cut-off switch
Front Hub 36 hole, Alloy nutted
Rear Hub Bafang 36V 250W motor
Rims 20″ double wall alloy rims with CNC sidewall
Tyres 20 x 1.75″ city tyres
Saddle Comfort saddle
Seat Post 34mm x 55mm
Mudguards Full length, black steel
Kickstand Alloy centre mount
Pannier Rack Not included
Weight 19.5kg
